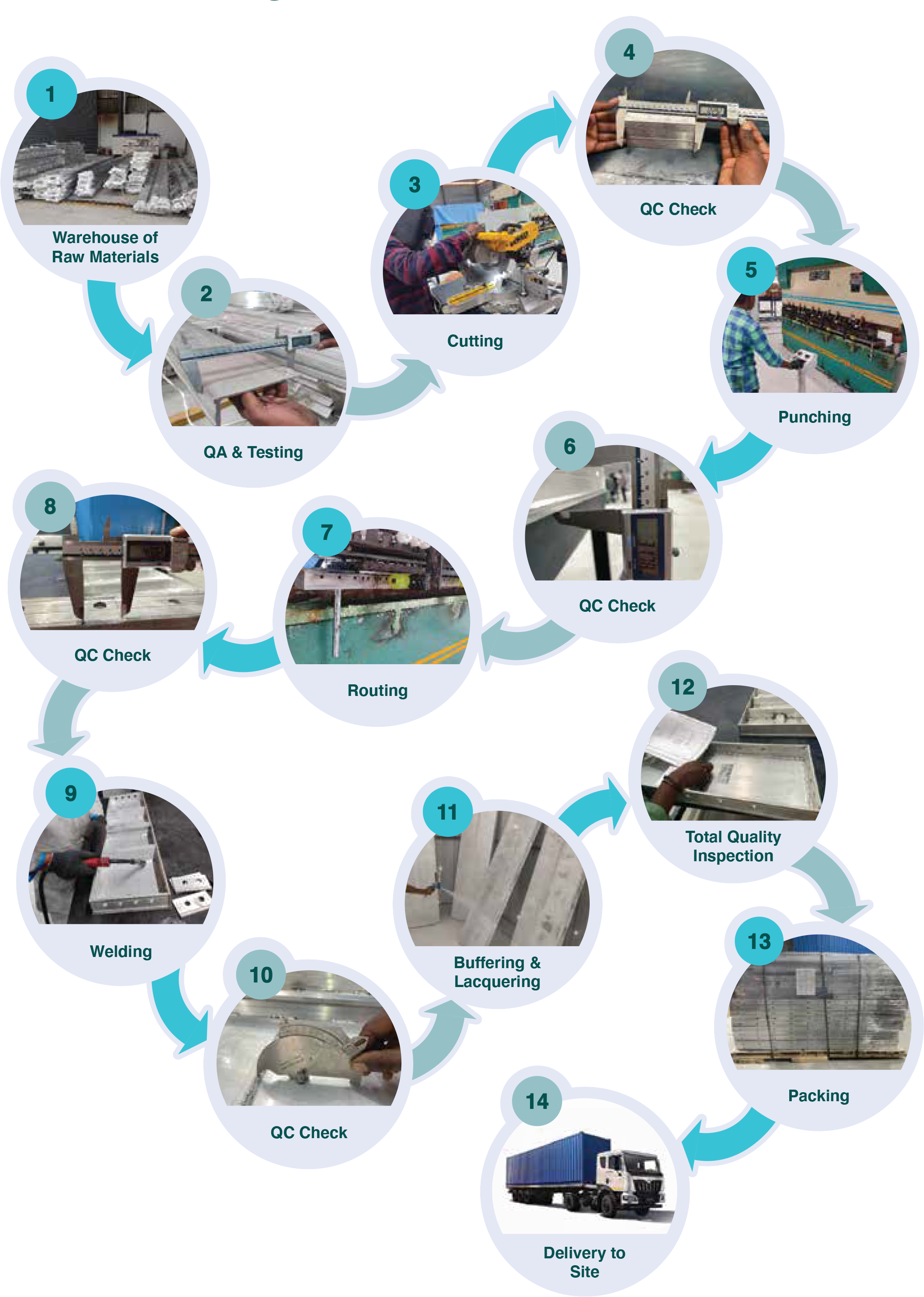

Process
Our Portfolio
| 1 | Process | Friction Stir Welding(FSW) Robotic Welding Manual Welding |
| 2 | Aluminium Face Sheet | 4.0mm |
| 3 | Aluminium Extrusion | 6061 T6 Grade. |
| 4 | Side Rail Dimension | 65mm x 8mm Thk |
| 5 | Avg Wt.of System | 32 kg/sqm ± 1 kg |
| 6 | Aluminium Component | ~ 21-22 kg/sqm ± 1 kg |
| 7 | MS Component | ~ 8-9 kg/sqm |
| 8 | Side Rail Welding | Robotic & Manual |
| 9 | Side Rail Hole Pattern | @50mm c/c |
| 10 | Corner Gussets | Triangular Gusset Provided |
| 11 | Load Rating of Panel | 4.5 Ton/Sqm |
| 12 | Percentage of Standard Forms | 90% |
| 13 | Estimated Repetitions | 200 Times |
| 14 | Reuse for Next Project | 75%-85% of Standard Components |
| 15 | Fixing Arrangements | Std.Ms Pin & Wedges. |
| 16 | Props | Adjustable MS Props with Pipehead & Secondary with Support Plate |
| 17 | Drawings in A3 size | 1 - Set with lamination 2 - Sets normal copies |
| 18 | Technical Support | 2 levels or repetitions |
| 19 | Supporting System | 1 + 1 |
| 20 | Brackets & Kickers | 1 + 1 |
| 21 | Extra Accessories | 10% extra by default |
| 22 | Speed Of Work | 20 to 25 Sqm per man/day |
| 23 | Rate of pour of Concrete | 4m/hr. |
| 24 | Maximum width Casted by Same Panel | 450mm width with wall Tie & 1200mm width with Tie rod support system |
| 25 | Max Height | 4.5m |
